- Machine equipment (hardware)

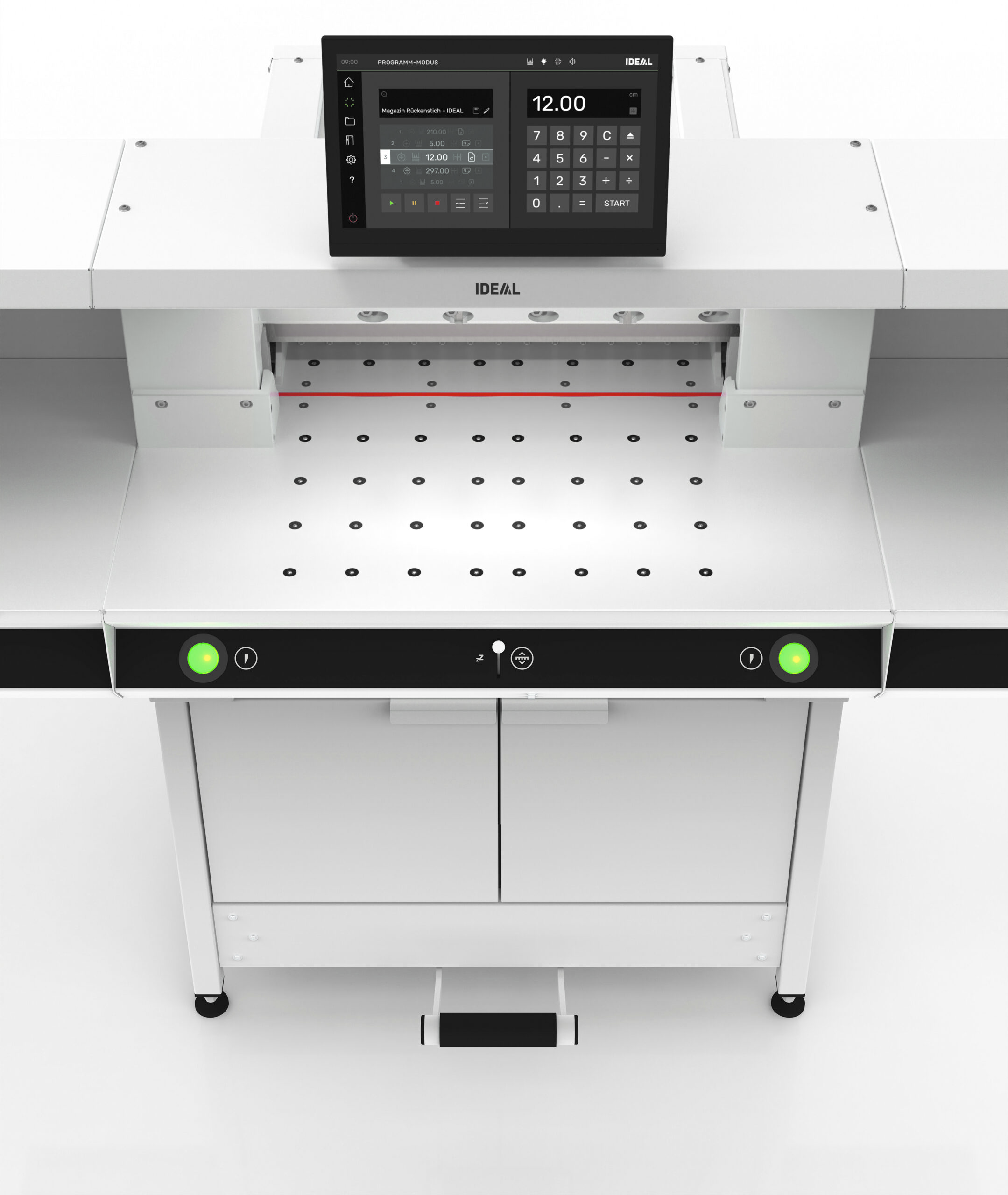

Display and operation via 15.6“ multi-touch display
PRECISION DRIVE: Multi-patented, electro-mechanical precision blade drive and hydraulic clamp drive
Programmable and manual backgauge positioning with optimum operator ergonomics and logic
Adjustable backgauge with narrow separations and plastic gliders
Spindle guided precision backgauge
Clamp bar with infinitely programmable adjustment of the required clamping pressure via the touchscreen
- Safety Cutting System – comprehensive SCS safety solution
IR light beam safety curtain on the front table – with additional status indication (red/green) in the display
Safety cover on the rear table
Patented, adjustable machine drive with integrated safety control
Main switch
Code lock: optionally adjustable electronic access lock

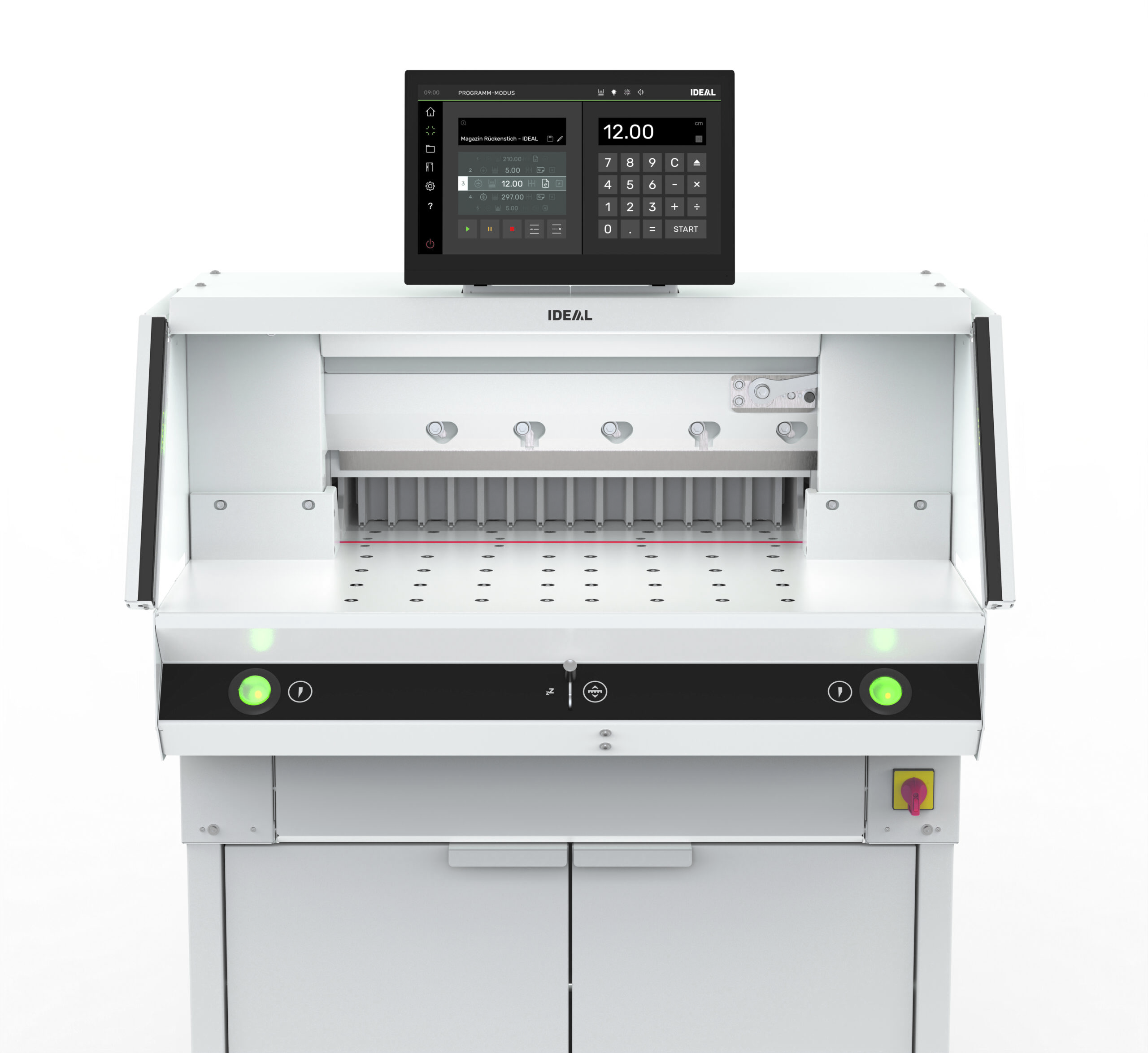

True two-hand blade activation via EASY-TOUCH buttons
- Powerful software of the latest generation
Functional, clear graphical user interface with intelligently divided display
CUT CONTROL: Main functions directly accessible via self-explanatory icons
Intuitive creation of cutting programs with user guidance and programmable clamp pressure
User guidance for handling the material to be cut during programme run
DATA MANAGER: Freely selectable folder structure and individually nameable file names for the saved cutting programs/print jobs
Intuitive operation, with many customised setting options: Illumination of the working area
Cutting line indicator
Touch screen brightness
Backgauge feed speed
Clamping pressure
Dimmable cut activating buttons
- Backgauge programme control
Electrically operated backgauge control, individually programmable via touchscreen
Programme view: current program steps are displayed in the wheeler
