Grafcut Electric Guillotine G52

Grafcut Electric Guillotine G52

P.O.A

Or call us on 1800 632 200
Availability
instock
SKU
MG52E-PF
Return to Previous Page

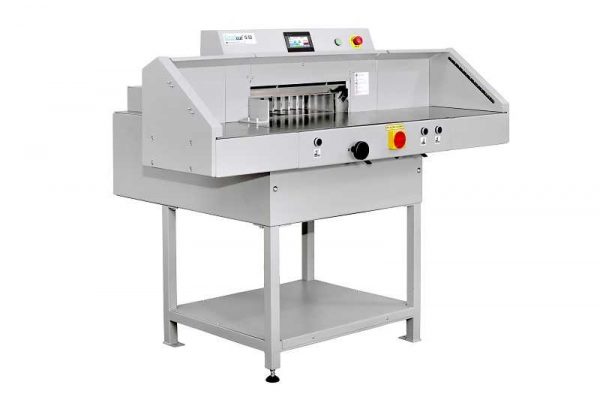

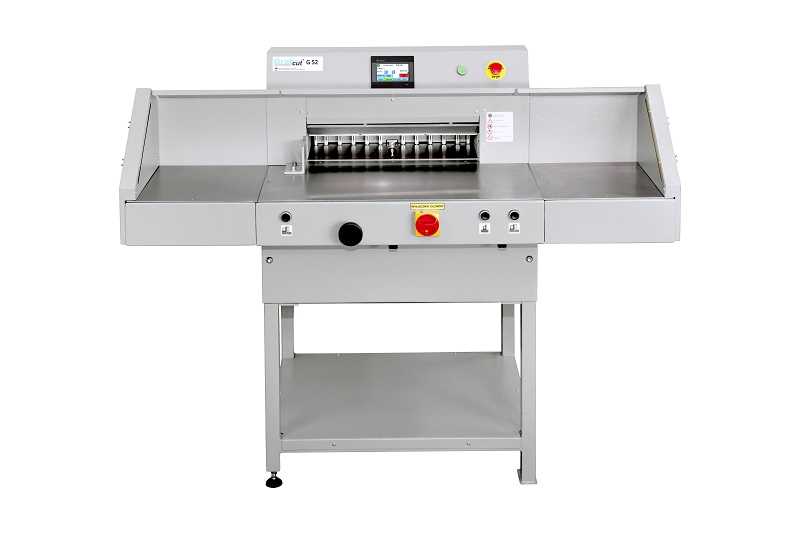

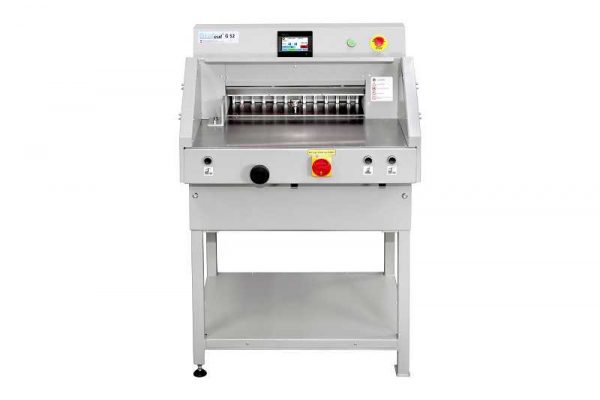

GrafCut Electric Guillotine G52

Grafcut electric guillotine G52 is a European made professional guillotine perfect for the on demand digital market
  • perfect for the small to medium Digital print shop
  • Powerful, smooth electro mechanical drive of blade and clamp
  • Clamp pressure adjustable via touch screen
  • Removable false clamp pad for even pressure distribution and zero marking of delicate stock
  • High quality commercial grade motors and gearbox for constant use
  • Stainless steel front and rear tables for lifelong use
  • Intelligent IR safety system by SICK
  • Frameless IR gives a larger working area without obstructions
  • Fully programmable with 100 programs, 100 cut positions, repeat cut and business card function
  • Cuts up to 520 mm Width
  • Back gauge measurement up to 520 mm
  • Cuts up to 80 mm (approx 800 sheets)
  • Minimum cut size 22 mm (with false clamp plate fitted = 40 mm)
  • Effortless cutting with true electronic twin trigger activation via integrated PLC
  • Automatic blade & clamp return from every position (latest EN standard compliance)
  • Red LED cut line indication
  • Side table extensions
  • Solid steel construction
  • Fully manufactured in the EU to the highest possible standards
  • Perfect for small to medium digital printers
  • Grafcut 52

  • knife change
